UPdate: 9500ix and LI Dual on 2010 Audi S4

[monkeyf15]

This is an update from my previous thread on my 9500ix and LI dual install on my 2010 Audi S4 (found here: 2010 Audi S4 - LI Dual and 9500ix). I moved the mute switch from the steering column to the center console and got rid of the remote power switch. I found myself forgetting to turn the LI on!

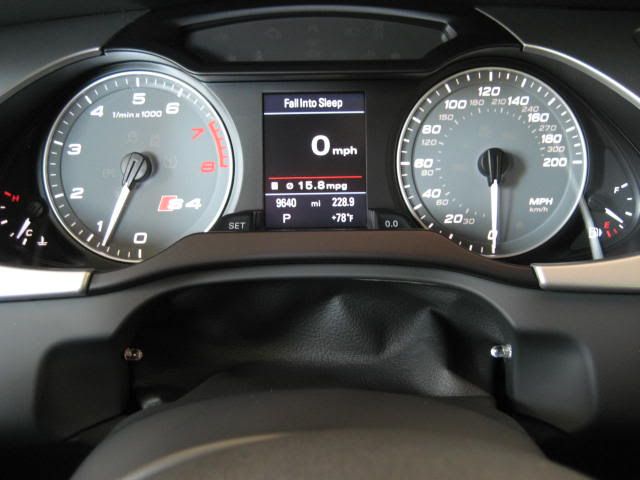

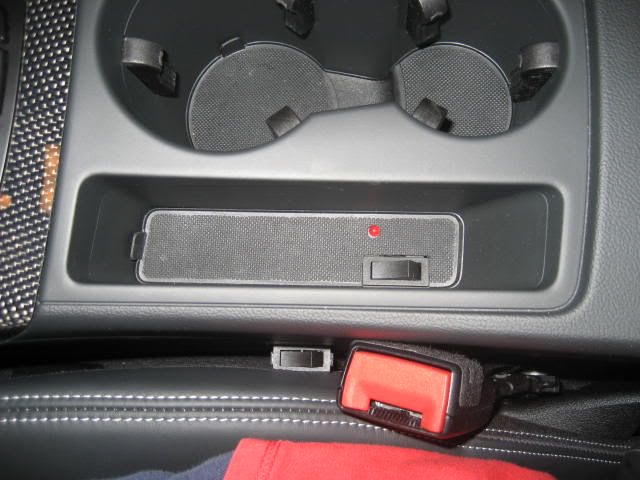

The remote mute is a flat switch installed under the rubber liner of the small slot compartment next to the cupholders. The remote alert LED is under the speedometer and only lights/flashes under alert. This combo can be purchased from Safe-n-Sound.com. My Laser Interceptor is the standard dual setup but I made my own custom power switch and remote alert LED. The remote alert is wired to the radio mute wire. Since the radio mute is essentially an on-demand ground, by connecting the LED to a 12V source you can have a completed, grounded circuit on alert. The LED is mounted opposite the 9500ix's LED. The standard LI power switch wouldn't fit in the small slot compartment due to wires underneath so I bought a separate 3 wire harness, normal SPST switch, and 12V LED. All three are connected to the LI's CPU and mounted inside the slot compartment in holes drilled with a dremel.

As you can see (hopefully) everything is very stealth and can easily be returned to stock. The entire setup works like a champ. For me though, the best part is I did it all myself. I'm not a big speeder, just a big geek I think. Enjoy!













As you can see (hopefully) everything is very stealth and can easily be returned to stock. The entire setup works like a champ. For me though, the best part is I did it all myself. I'm not a big speeder, just a big geek I think.

[Google Adsense]

[Solidjake]

Very nice install. I think the drivers side head needs to be shifted a tiny tiny bit if I'm not mistaken.

Nice spots for the LEDs. Are that clearly visible?

[Cloud_9]

Quite impressive, nice work!

[monkeyf15]

Nice spots for the LEDs. Are that clearly visible?

Very - both are very bright and right under the tach/speedo. Also, both are flashing LEDs so really grab your attention. Thanks for the compliments.

[PMoth]

Very creative. Luv it!!

[function12]

Sweet install!!
